TECHNICAL SPECIFICATIONS
1. General Information

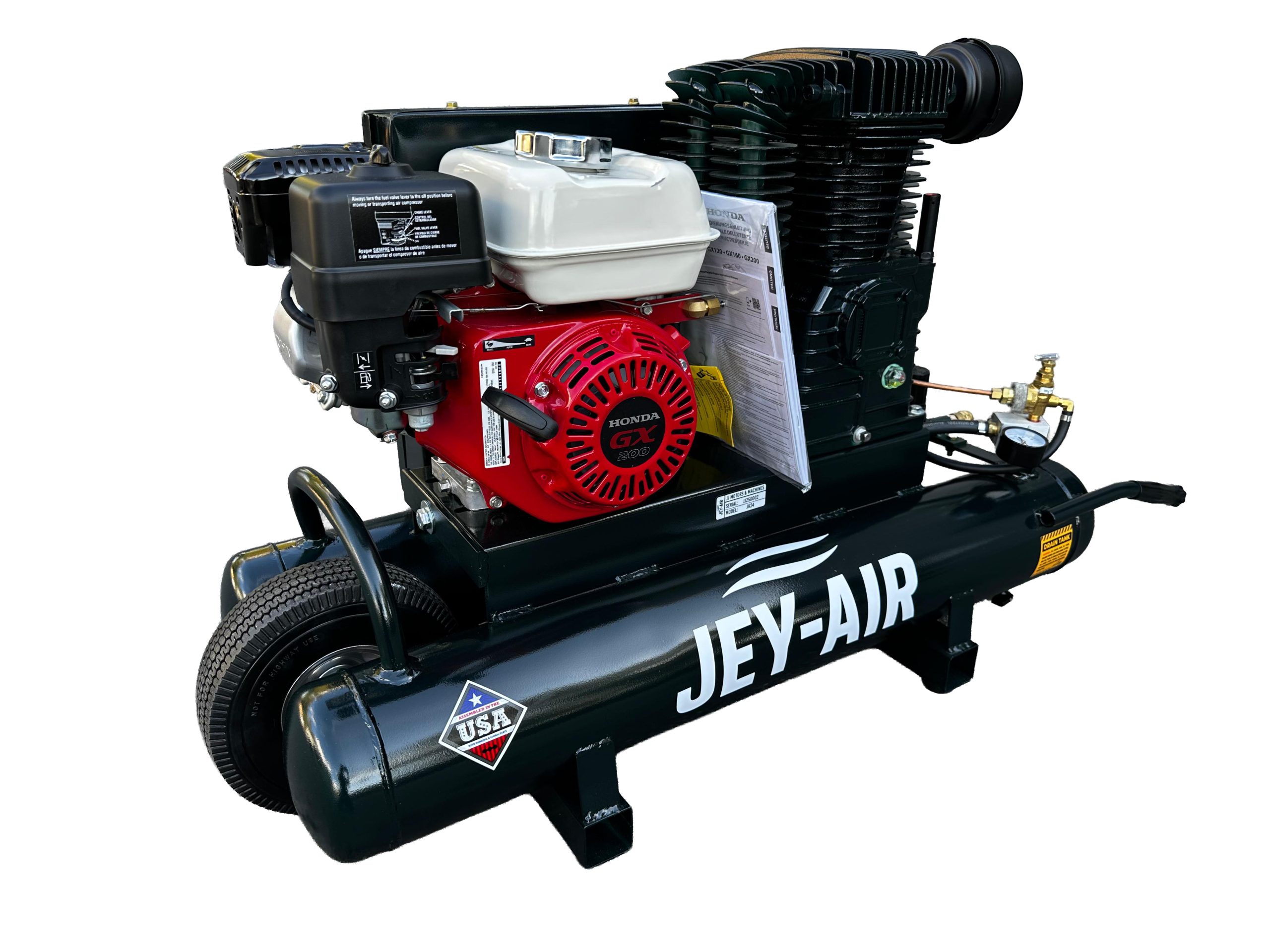

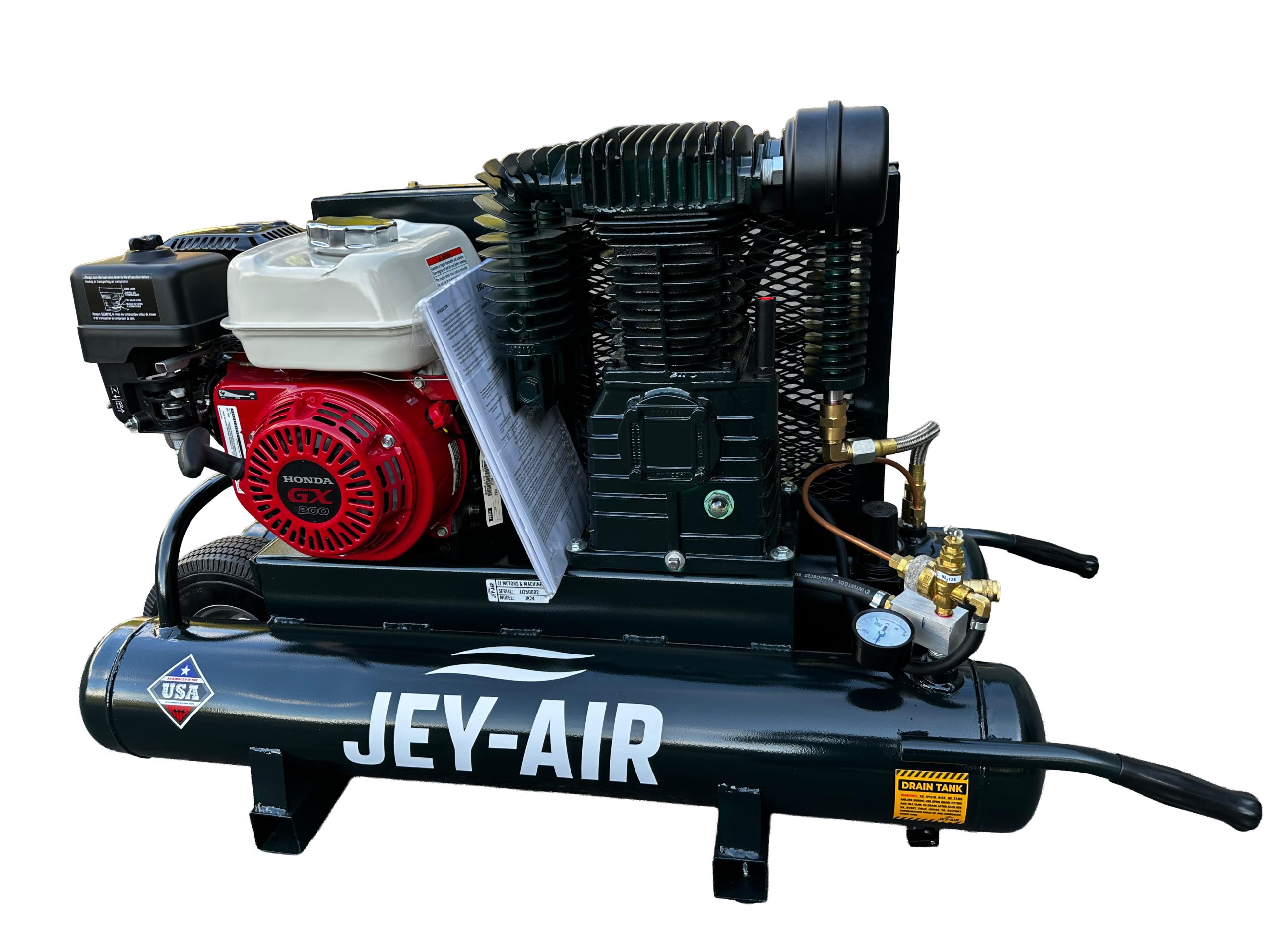

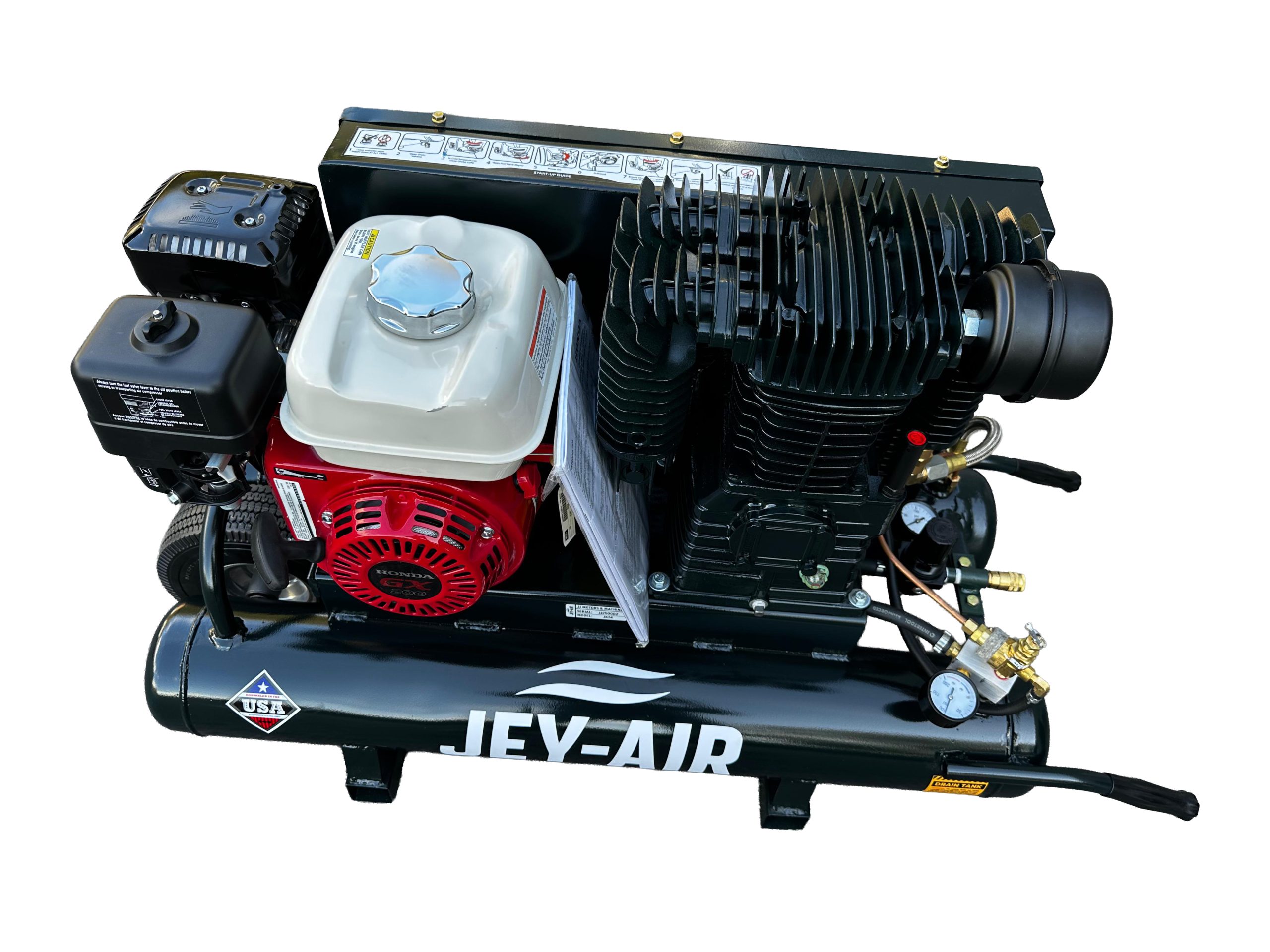

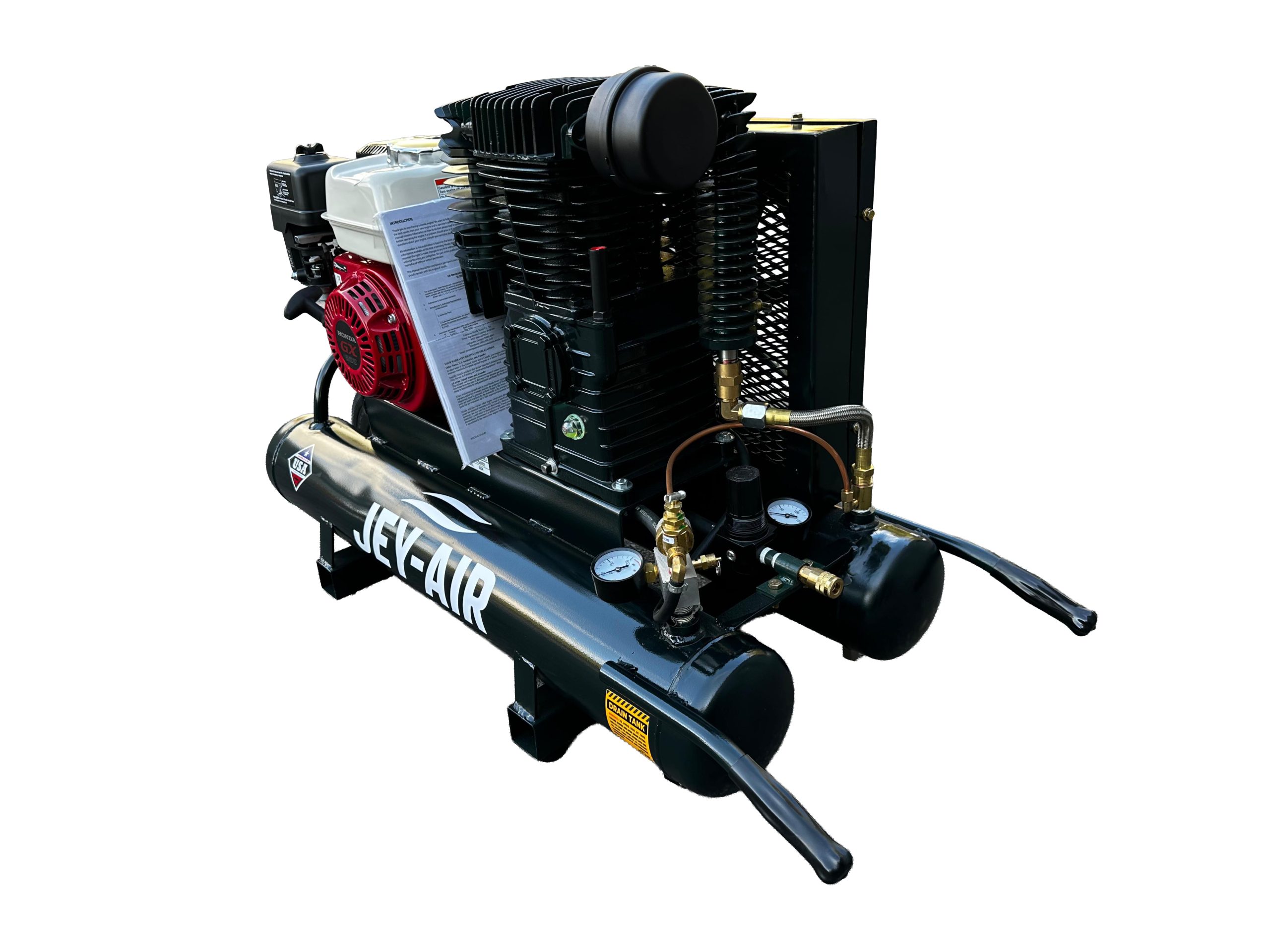

- Brand: JEY-AIR
- Model: JK24
- Manufacturer: JJ Motors & Machines – Orlando, Florida, USA
- Type: Gasoline-powered, two-stage air compressor
- Use: Professional / construction / mobile workshop
2. Engine
- Brand / Model: Honda GX200
- Power: 6.5 HP
- Fuel Type: Gasoline
- Rated Speed: 3,450 RPM
- Starting System: Manual (recoil start)
3. Compressor Pump
- Model: JEY-AIR JK24
- Type: Two-stage
- Operating Speed: ~1,200 RPM
- Lubrication: Splash lubrication
- Number of Cylinders: 2
- Drive System: Dual A-type belt (2-A)
4. Performance
- Maximum Pressure: 150 PSI
- Air Delivery: ≈ 14.5 CFM @ 90 PSI
5. Tank Capacity
- Nominal Capacity: 10 gallons (dual tank)
6. Equipment Dimensions
- Length: ~86 cm (≈ 34 in)
- Width: ~48 cm (≈ 19 in)
- Height: ~75 cm (≈ 30 in)
- Dimensions are approximate and may vary depending on configuration.
7. Weight
- Weight: Approximately 80–85 kg (175–185 lb)
8. Recommended Applications
- Framing
- Roofing
- Pneumatic nailers
- Continuous-use air tools
- Professional jobsite and workshop use
9. Maintenance
- Pump Oil: ISO 100
- Engine Oil: As specified by Honda GX200
- Drain air tanks after each workday
- Maintenance according to JEY-AIR recommendations
10. Warranty
- Coverage: 1 year against manufacturing defects
- Includes: Engine, pump, and tanks
- Excludes: Misuse, lack of maintenance, normal wear, unauthorized modifications, or damage due to improper operation
